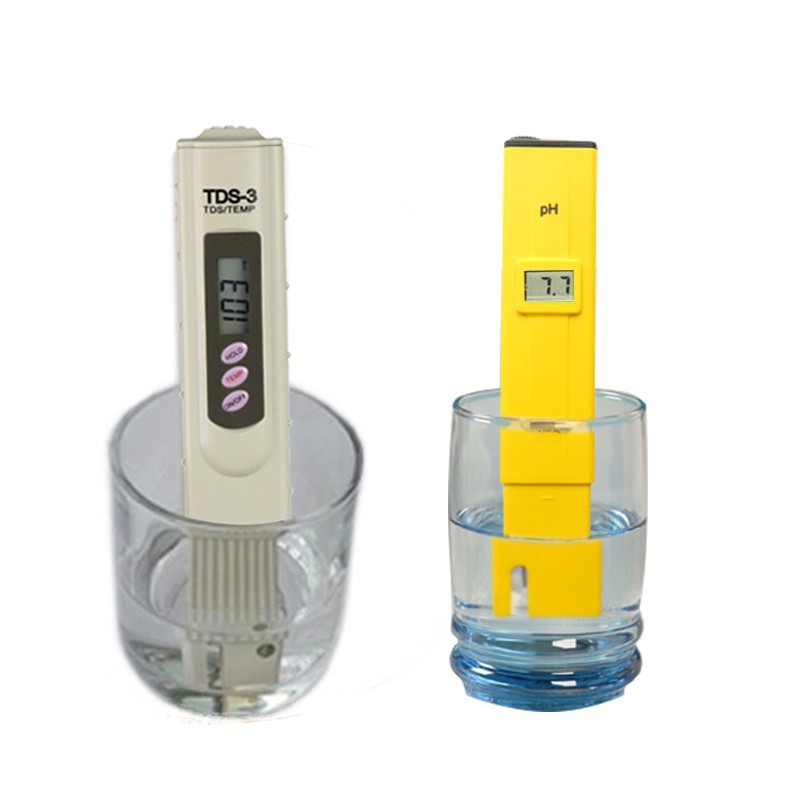

Digital PH Meter + TDS Tester for drinking water tds meter tds tester ph meter digital PH pocket pen TDS-3 water tester



Buy product

SKU: 32336201188 Category: Tag:









Digital PH Meter + TDS Meter Ph for drinking water tds meter tds tester ph meter digital PH pocket pen TDS-3 water tester


aeProduct.getSubject()


  • 1 x PH meter
  • 1 x Calibration Screwdrive
  • 1 x PH meter English Manua

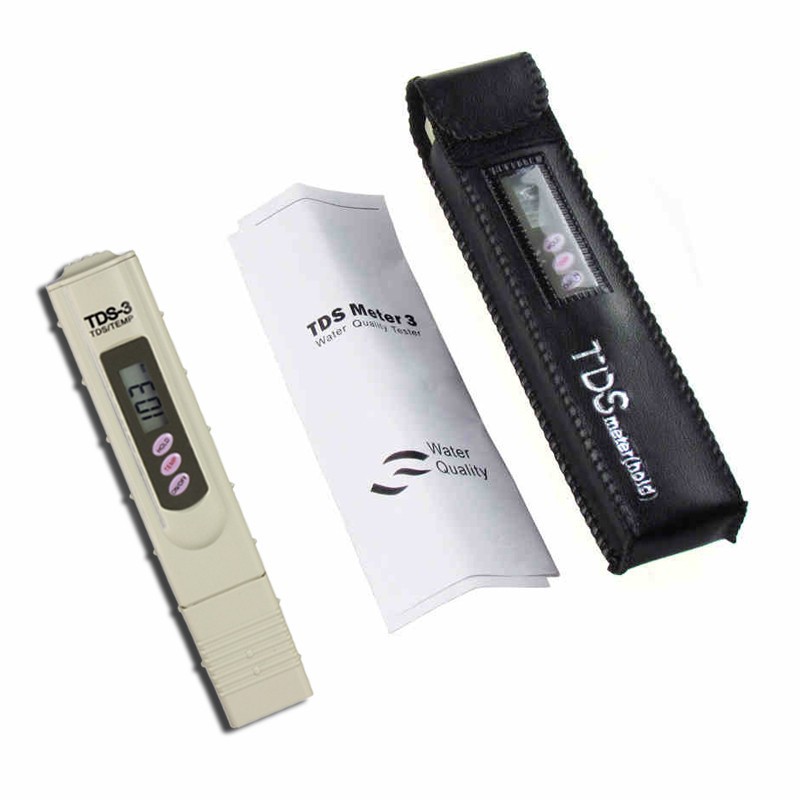

  • 1 x TDS Meter
  • 1 x TDS Meter English Manual
  • 1 x Bag for TDS Meter



aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()



aeProduct.getSubject()

This digital pen style pH meter is an ideal instrument for whatever you may need to test the pH levels. Excellent PH meter, very accurate and durable

  • Measuring pH Range: 0.0 – 14.0 PH. Resolution: 0.1 PH
  • Accuracy: ±in 0.1 pH
  • Typical EMC DEV: ± 0.2 PH
  • Batteries: 3 x 1.5V (AG-13 Button Battery)
  • Trimming: By Potentiometer
  • Meter comes with calibration screwdriver
  • Measures total dissolved solids (TDS) and temperature
  • Measurement Range: 0-9990 ppm,
  • Accuracy: 2%
  • Digital Calibration (push button): Factory Calibrated
  •

    Shuts off automatically after 10 minutes of non-use
    Automatic temperature compensation function: it can automatically change the displayed value into the value of 25 Degrees
    High accuracy: Use the Titanium alloy probe which can avoid magnetic disturbance to test water and only has the error (± 0.1)
    LCD display screen: Big LCD display screen which has great waterproof performance and let you easily read the displayed value
    Fast measuring: can measure once in five seconds



  • Size: 14.2 x 2.7x 1.5 cm (pH Tester)
  • Size: 14.5 x 2.6 x 2.0 cm (TDS)
  • Package weight: 6.90z/197g
  • Accuracy: ± 0.1PH
  • Battery: 4 x 1.5V (AG – 13 button battery
  • The using life of battery: 700 hour
  • Power source: 2 x 1.5 V (button cell)
  • Zero: Adjust by the compensate potentiometer
  •
    How to use it:

    PH meter calibration
  • Under the condition that the temperature is lower than 25 Degrees, submerge the PH meter’s electrode into the mixed phosphate standard buffered solution (PH is 6.86 and slightly shake the electrode
  • Use the small screwdriver to adjust and revise potentiometer until the displayed value accord with the PH value of the standard buffered solutio
  • Submerge the PH meter’s electrode into the Potassium hydrogen phthalate (PH4.0) or the borax standard buffered solution (PH9.18)
  • After one minutes, the error between the displayed value and the PH value of the standard buffered solution belongs to the allowed range.
  •
    Note:
    Under the following situations, the PH meter must be calibrated again
    The PH meter had been used or placed for a long time after calibrated
    The electrode is used frequently
    The requirement of testing accuracy is higher.

    Operating steps:

    Take down the protective jacket of PH meter



  • Use distilled water to clean up the electrode of PH meter, and then use filter paper to soaks up the water of electrode
  • Switch on the switch which on the battery compartment
  • Insert the PH meter into solution until the liquid submerge the “immersion line”
  • Slightly stir resolution for about two minutes and you can read the displayed value
  • After use, clean up the electrode, turn off switch and put on the protective jacket of PH meter
  •

    The introduction of TDS-3 Tester:

  • Take down the protective jacket
  • Insert the TDS-3 Tester into solution until that the liquid submerges the “immersion line”
  • Slightly stir the liquid to eliminate the bubble in the TDS-3 Tester and Wait for 10 seconds until the displayed value is stable, and then press the HOLD button and take out the Tester to read the displayed value
  • After use, spin-dry the liquid in the tester and put on the protective jacket
  •



    Test the Temperature

  • You can use the temperature test function in the liquid or air at any time when you open the tester
  • Press the EEMP button, the display screen will change into Temperature Display
  • Continuously press the TEMP button, the tester will change into TDS mode
  • Note: You had better not submerge the TDS-3 tester into water; the TDS-3 tester should be protected from direct sunlight, heavy load and fall. And it can test the
  • 80 Degrees hot-water
  •
    Note:
    The value of TDS can show the content of impurities. The bigger of the value means that the content of impurities is larger; conversely, the content of impurities is small.
    The factors that affect the test value of TDS: the temperature of water (the TDS-3 tester cannot test the water with high temperature such as, boiled water). The flow velocity of water (the TDS-3 tester cannot be applied to test the flowing water)
    If the tester displays a flashing "x10"icon, multiply the reading by 10




    aeProduct.getSubject()

    aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()






    aeProduct.getSubject()

    We accept Aliexpress Escrow as our payment method.

    If you have any other questions, please contact us directly.



    aeProduct.getSubject()



    We will send out the package in 1-2 Business Days for your orders. Items usually will be shipped by China post airmail or HK post And Singapore Post .

    Note: We only send to the address in the order. Buyer will be responsible for any taxes, customs and any other charges generated in the buyer’s country!



    aeProduct.getSubject()

    We provide ONE-YEAR Warranty for all the products listed.If you receive  a defectve one, it can be returned within 10 days after you signed up the package. Please be noticed that the returned item must be in its original conditions and buyer should bare the return shipping fee.



    aeProduct.getSubject()

    Your satisfaction and positive feedback will be our best return for serving you. If you feel satisfied with our products and services, please leave us your positive feedback. Your feedback will be highly appreciated and will help us to serve you better.

    If you are not happy with our products and services, please contact us before you submit a negative feedback. Once there is a problem reported, all of our staffs will try best to help you out of the issue occurred. Thank you for your understanding.

    Working Time
    8:30 –12:00 AM, 14:00 –18:00 PM, Monday to Friday
    9:30 –12:00 AM Saturday

    Additional Information

    DIY Supplies

    Plumbing

    Brand Name

    Sindax OEM

    Model Number

    VIC150003

    item Type

    Digital PH Meter & TDS-3 TDS meter

    Package included

    1x digital PH meter + 1x TDS Water meter

    Feature of Ph Meter

    Wide usage, 0-14 PH Value Range

    Feature of TDS meter

    temperature testing

    Battery of PH Meter and TDS tester

    This listing DO NOT include any Batteries.
